W. Van Buren Street

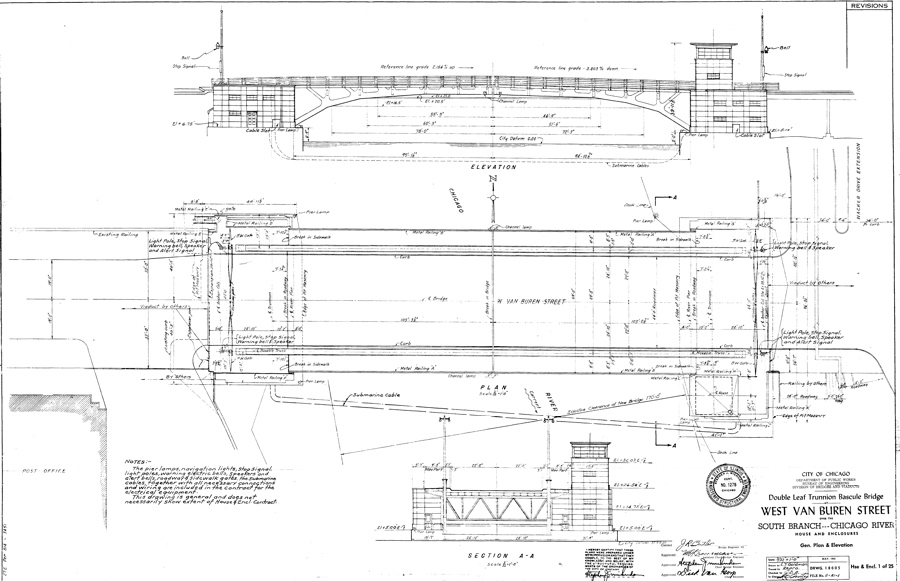

General Plan and Elevation drawing (1955)
(Courtesy of the Chicago Department of Transportation - Division of Engineering)
Find Us On:
Menu:
- Home
- About / Contact
- Background / History
- Bridges
- Chicago River - Main Stem
- N. Lake Shore Drive (FDR Memorial Bridge)
- N. Columbus Drive (W. P. Fahey Bridge)
- N. Michigan Avenue (DuSable Bridge)
- N. Wabash Avenue (Irv Kupcinet Bridge)
- N. State Street (Bataan Corregidor Memorial Bridge)
- N. Dearborn Street
- N. Clark Street
- N. La Salle Street (Marshall Suloway Bridge)
- N. Wells Street
- N. Franklin-Orleans Street
- Chicago River - South Branch
- Chicago River - Main Stem
- Stories / Cultural
- Galleries
Links:
- Videos
- Bridge Quick Facts
- Dedicated: 12/5/1956
- Designers: Division of Bridges and Viaducts
- Classification: Single Deck; Rail Height Trusses
- Clear Span: 182 feet
- Trunnion-to-Trunnion Span: 210 feet
- Width: 69 feet
- Leaf Weight: 1,000 - 2,000 tons (est)
- Height above the Water: 22 feet
- Construction Cost in 1956: $3.5 million
- Average Daily Foot Traffic (1999): 3,100
- Average Daily Vehicular Traffic (2006): 6,700
- Annual Lifts (2006): 40
- Last Rehabilitated: NA
- Engineering Drawings
- Bridge Page 1
